Vertical Manual Autoclave
Vertical Cylindrical
Manual Autoclave

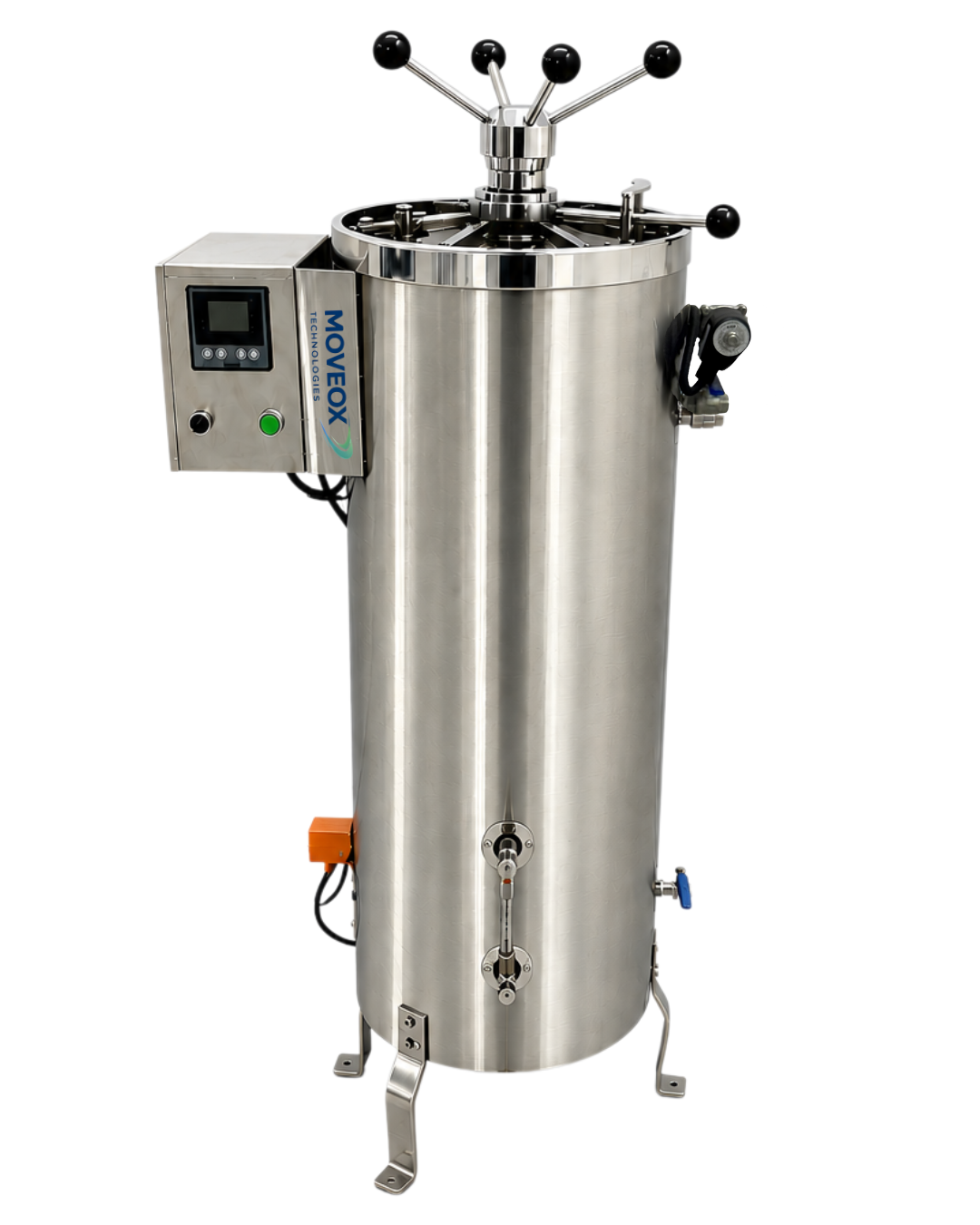

VERTICAL CYLINDRICAL MANUAL AUTOCLAVE
COMMON FEATURES
- Covered with 50mm thick resin bonded glass wool enclosed with a SS outer skin.
- Door: Pedal lifting system with radial locking arms provided for locking & unlocking the device.
- Fitted with high temperature resistant silicon gasket.
- Immersion heaters, pressure control device & water level glass tube along with a low-level water cut-off sensor.
- Equipped with safety valves, water inlet & outlet valves, non return valve, vacuum breaker valve, pressure gauge & digital temperature Indicator.
- An electrical control panel box is equipped with. The electrical components includes: Air break contactor, YBR indicators, and an on/off switch.
- For Manual operations: The entire sterilization process is managed by inlet and outlet valves.
Available Sizes:-
| Size in Inches | Height(mm) X Depth(mm) | Capacity (Lit.) | Elect. Load (Kw) |
|---|---|---|---|
| 12 x 20 | 300 x 500 | 48 | 3 |
| 14 x 22 | 350 x 500 | 50 | 3 |
| 16 x 24 | 400 x 600 | 78 | 6 |
| 18 x 24 | 450 x 600 | 98 | 6 |
TECHNICAL SPECIFICATION
| Chamber | S.S. 304, 2mm to 3mm thick |
| Jacket | S.S. 304, 2mm to 3mm thick |
| Door | S.S. 304 grade |
| Immersion Heating Element | 4 Kw/6 Kw |
| Operating Temperature | 121°C |
| Operating Pressure | 20 psi |
| Power Supply | 220v, 50 Hz |
