ETO Sterilizer
ETO Autoclave

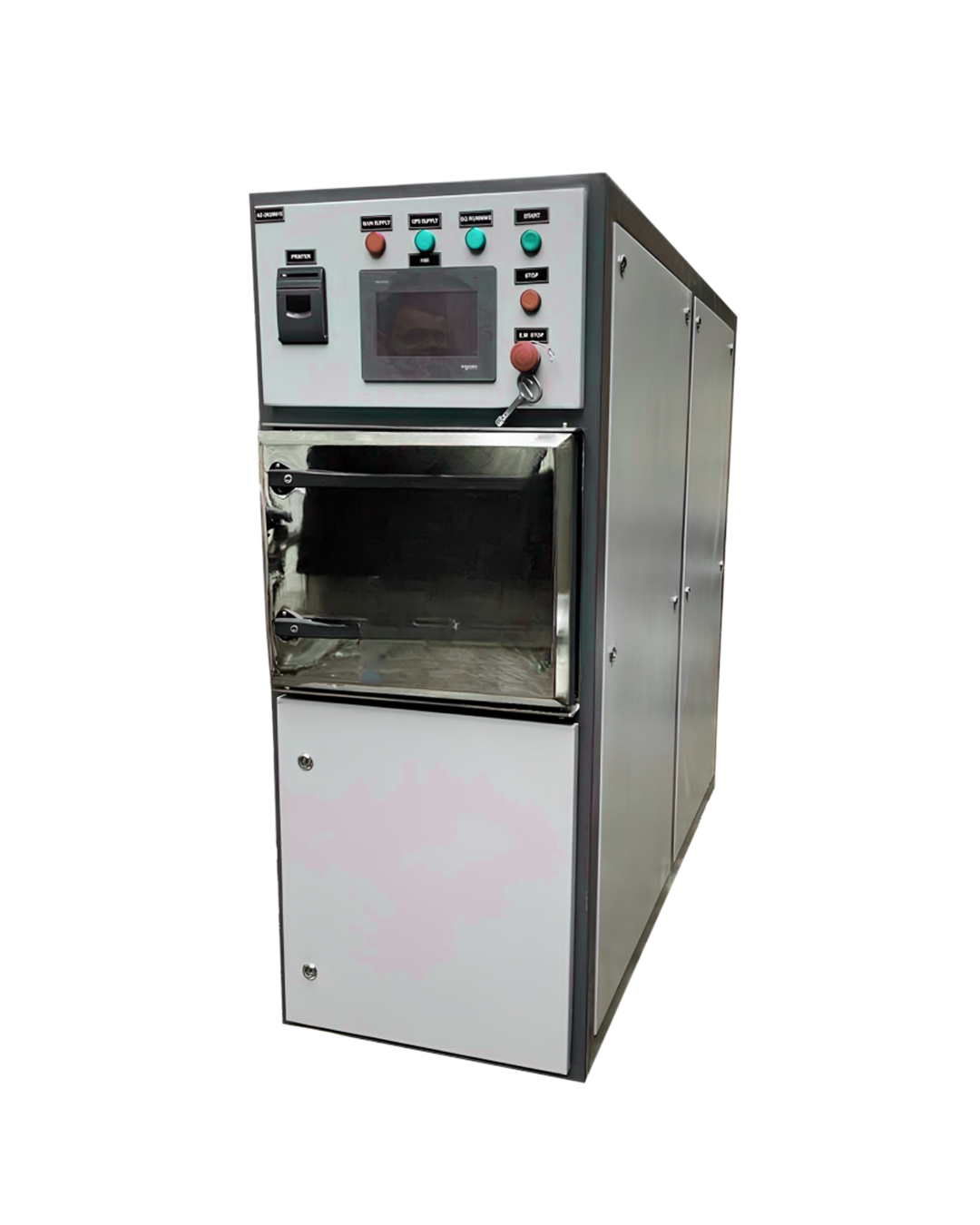

ETO AUTOCLAVE STERILIZER
KEY FEATURES
- One-Button Operation: Easy-to-use PLC/HMI control with digital display for monitoring the sterilization process.
- Automated Data Recording: Integrated printer provides a record of the entire sterilization cycle.
- Oil-Free & Noise-Free System: Designed for consistency & low maintenance, with no moving parts in the vacuum system.
- Digital temperature control with LED display and RTD-100 temperature sensor for accurate measurement.
- Single-point locking door with gasket sealing arrangement and power failure alarm facility.
- Operates with 100% single-use disposable ETO cartridges and integrated VLT cycle facility.
- Efficient Heating & Advanced Degassing System: Ensures uniform heating and effective removal of residues.
Available Sizes:-
| Size in Feet | Width (mm) X Height (mm) X Depth (mm) | Capacity (Lit.) | Electrical Load (Kw) |
|---|---|---|---|
| 1 x 1 x 2’ | 300 x 300 x 600 | 55 | 2 KW |
| 1 x 1 x 3’ | 300 x 300 x 900 | 85 | 2.5 KW |
| 1 x 1 x 4’ | 300 x 300 x 1200 | 110 | 3 KW |
| 1.5 x 1.5 x 2’ | 450 x 450 x 1900 | 120 | 3 KW |
| 2 x 2 x 3’ | 600 x 600 x 1200 | 335 | 3 KW |
TECHNICAL SPECIFICATION
| Rectangular Chamber | S.S. 304, 3mm to 5mm thick |
| Door | S.S. 304 grade |
| Operating Temperature | 37°C to 55°C |
| Power Supply | 230v, 50 Hz |
| ETO Gas Injection | Cartridge-based system for convenient gas handling. |
| Vacuum Pump | Oil free Vacuum Pump |
