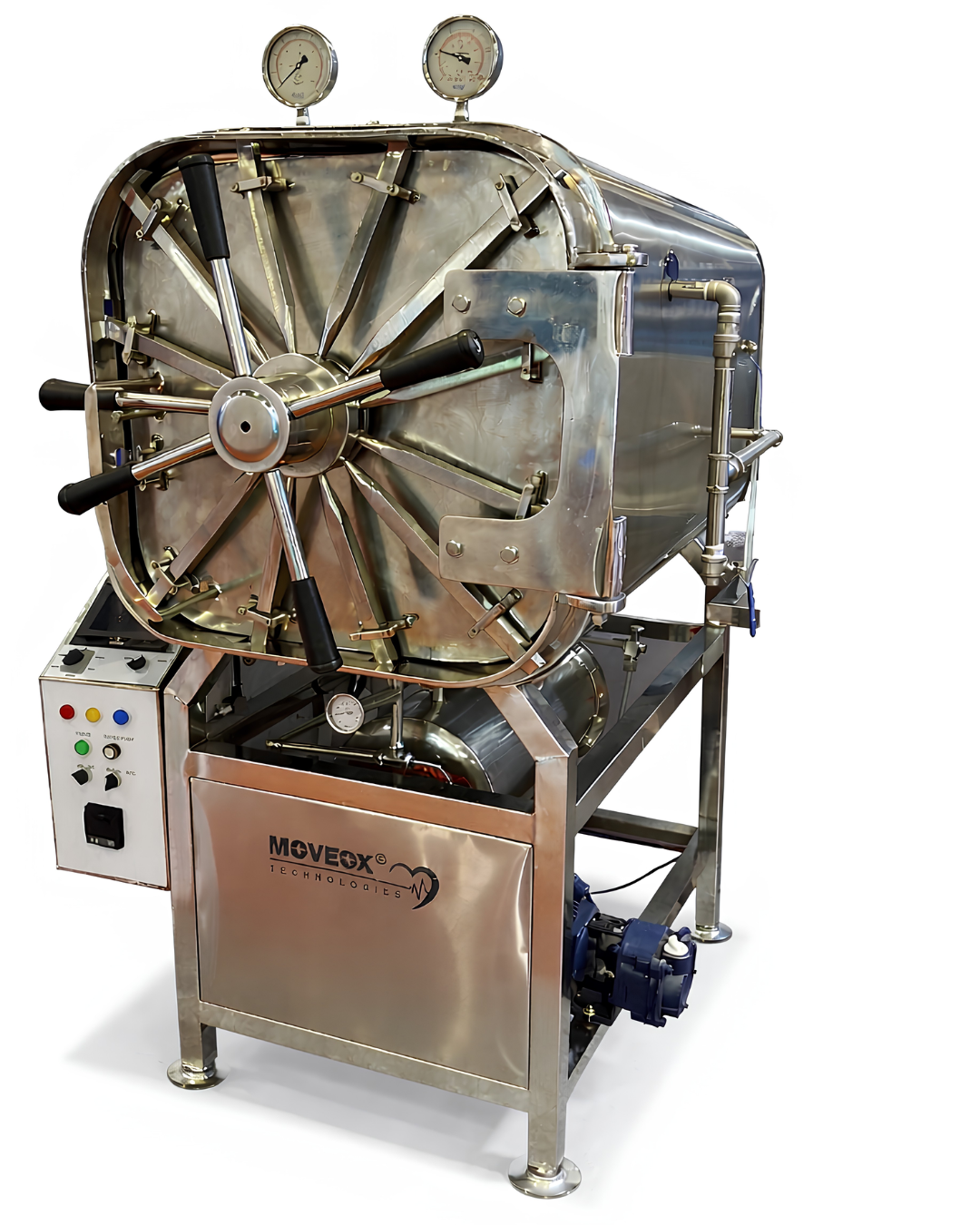

Horizontal Rectangular Manual Autoclave

HORIZONTAL RECTANGULAR MANUAL AUTOCLAVE WITH HINGED SINGLE/ DOUBLE DOOR

Triple wall along with steam jacket & inner chamber with separate boiler.
Steam generator fitted with a heavy Boiler Plate, immersion heaters, pressure control device & water level glass tube along with a low level water cut-off sensor.
Equipped with safety valves, non return valve, vacuum breaker valve, moisture trap, pressure gauge, compound gauge & temperature gauge/ Digital Temperature Indicator.
An electrical control panel box is equipped with. The electrical components includes: Air break contactor, MCB, YBR indicators, and an on/off switch.
Manual Operation: Entire manual sterilization process is managed through a "Multiport Valve".

Size in Feet	Width (mm) X Height (mm) X Depth (mm)	Capacity (Lit.)	Electrical Load (Kw)
2 x 2 x 3	600 x 600 x 900	335	18
2 x 2 x 4	600 x 600 x 1200	450	18
2 x 3 x 5	600 x 900 x 1500	849	36
3 x 3 x 4	900 x 900 x 1200	1000	36
